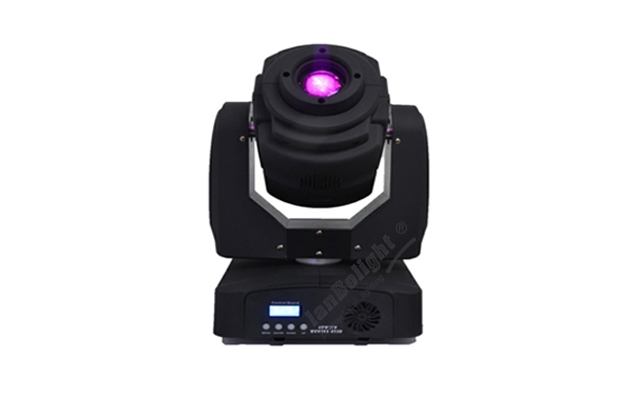

LB-M602L

【Product parameters】

Input voltage: /50-60Hz AC90-240V

Source: CREE high power white 60W lamp

Rated total power: 90W    PFC≧0.96

Rotating pattern plate: 7 metal patterns + white light (glass pattern can be selected)

Pattern water effect, pattern jitter, positive and negative direction rotation

Fixed pattern plate: 9 metal patterns + white light

Color disk: 7 color film + white, rainbow effect

Prism: three prism

Scanning angle: horizontal 540 degree vertical 270 degree automatic dislocation correcting function scanning precision fine adjustment: 8-16bit

Special features: horizontal / vertical can be set to run in closed light

Horizontal / vertical scanning angle range

Control: DMX512, auto / master-slave / voice control channel: 14/11 channel selection control

Focus: electronic linear focus dimming: 0-100% electronic zoom: 15 degrees ~28

Strobe: 0-20 / sec with different frequency flash point beam: 15 degrees

Cooling system: built in convective heat transfer system

Protection level: IP20

Package size: 520X380X350mm

Net weight: 14KG

Gross weight: 16KG
